Guillotine Window Mechanism

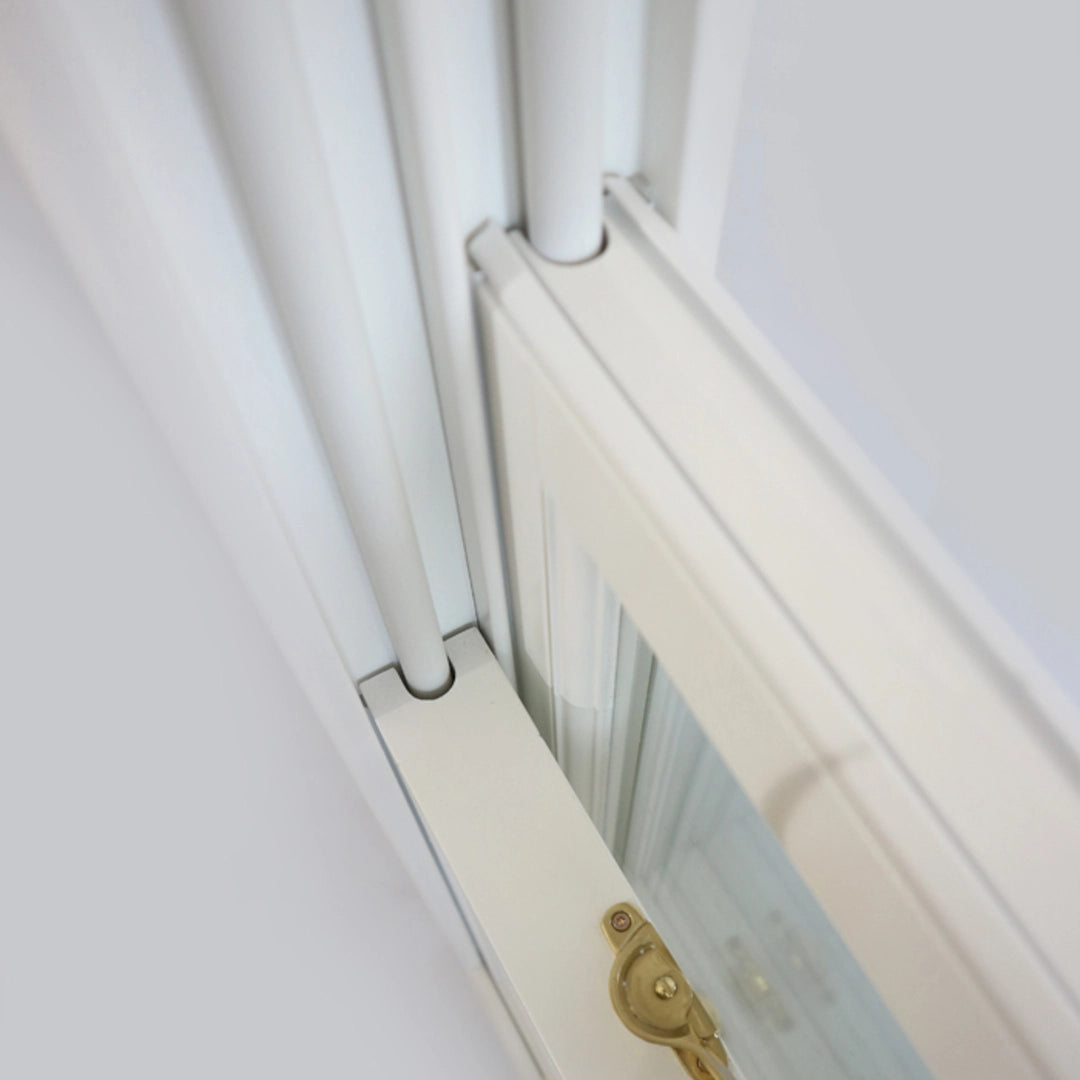

It is the mechanism that allows the sash to stop at the desired location in guillotine windows and to open the window easily without using any force. A pair of mechanisms allows you to lift the window sash up to 45 kg and allows the sash to stop at the desired location.

Type D: Suitable for wings weighing up to 18 kg. X= 18 mm, Y= 18 mm

Type F: Used for wings weighing up to 27.2 kg. X= 18 mm, Y= 18 mm

KO type: Used for wings with a maximum wing weight of 49.9 kg. X= 21.5mm, Y= 21.5 mm
